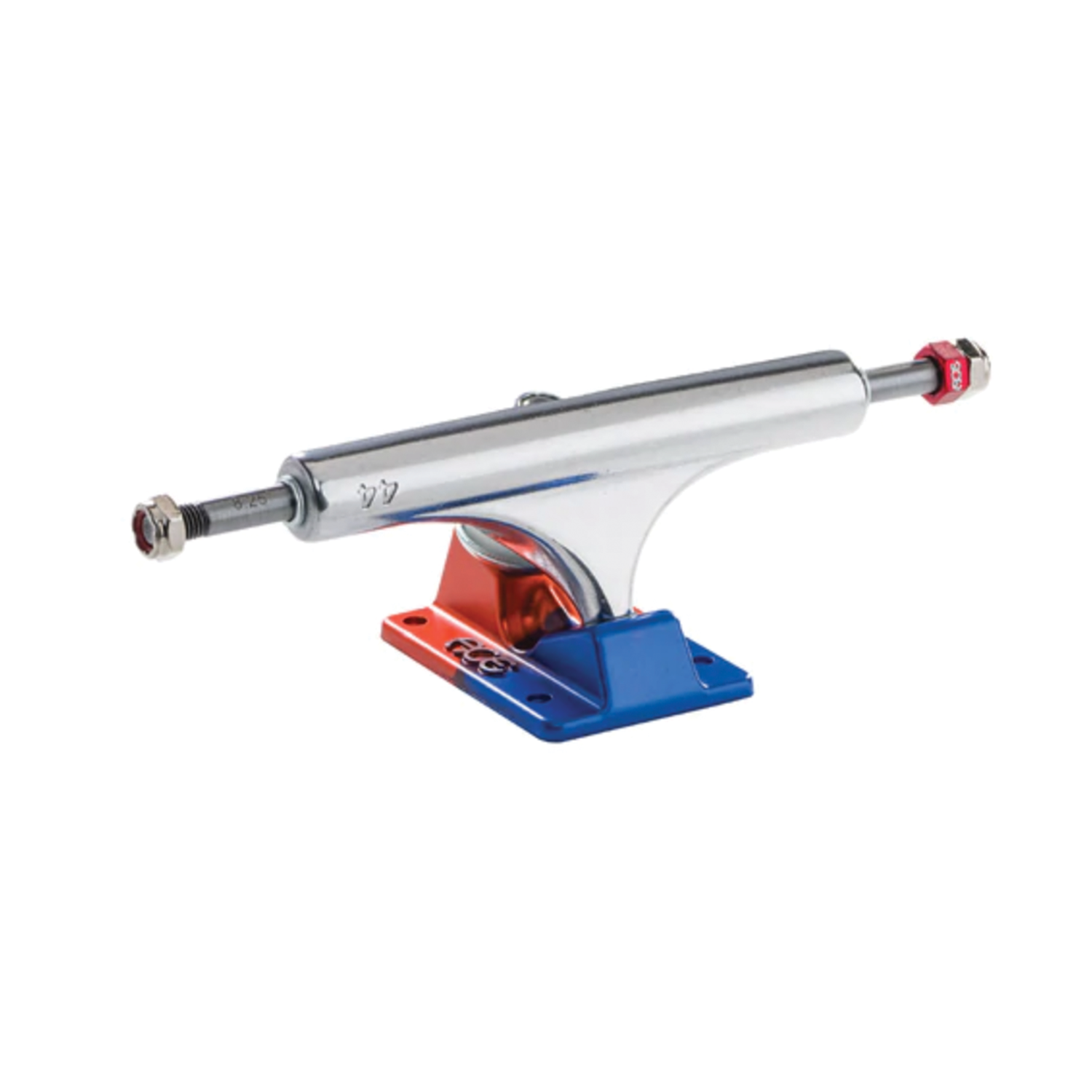

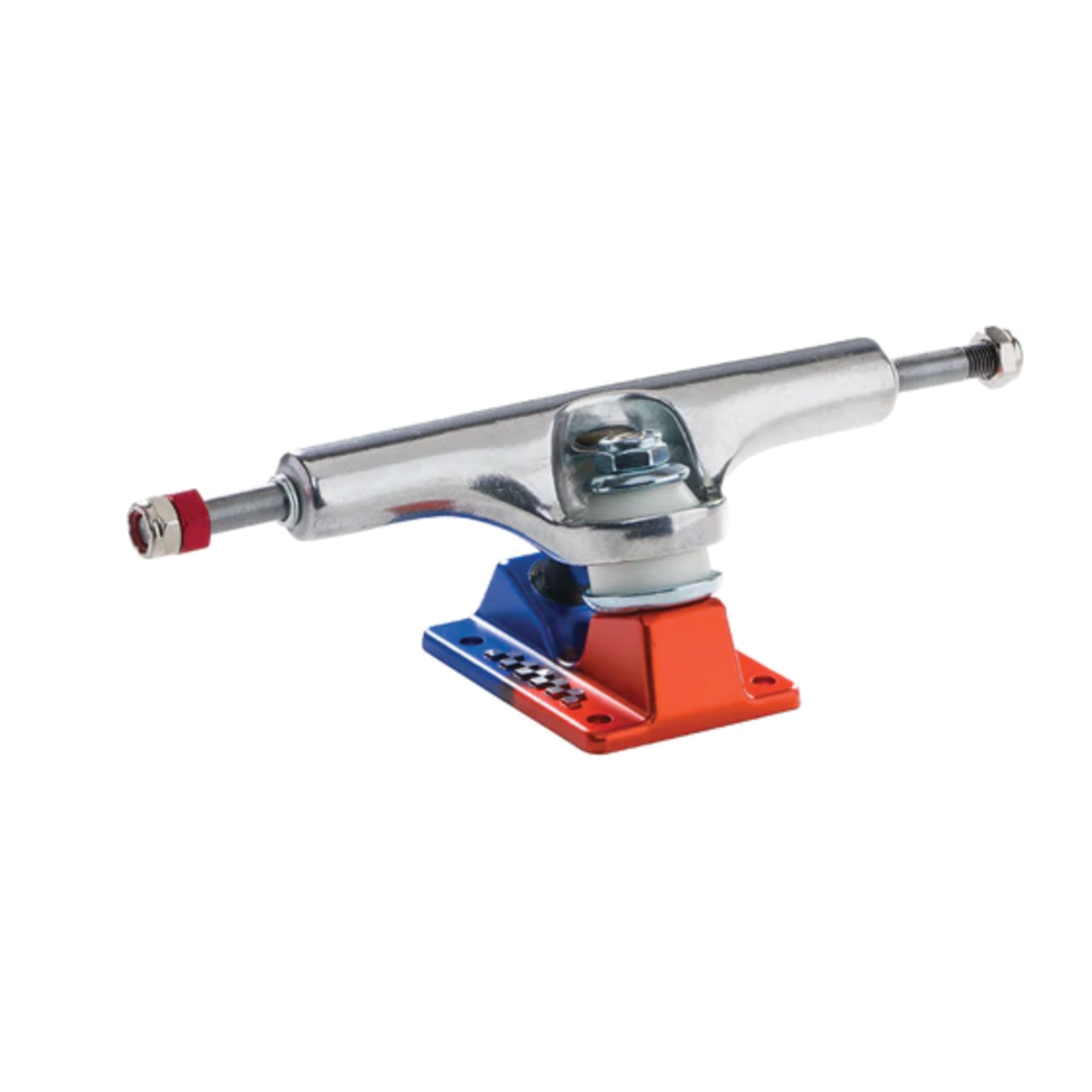

• The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

  • Hanger width: 5.6” (143mm)
  • Truck height: 2.1” (53mm)
  • Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
  • True T6 heat-treated baseplates and hangers
  • SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
  • Patent pending rethreading axle nuts - no more damaged axle ends!
  • Durable Hand-poured 96a urethane pivot bushings for better response.
  • Refined suspension for a cleaner turn.
  • Top Bushing: 12mm tall | 91a hardness
  • Bottom Bushing: Bottom 14mm tall | 86a hardness
  • Machine-faced hanger ends for precise bearing contact.

22's:  7.25 - 7.9 = True 7.5 axle

33's: 7.9 - 8.1    = True 8.0 axle

44's: 8.1 - 8.4   = True 8.25"

55's: 8.5 - 8.7.   = True 8.5"

66's: 8.8 - 9.25 =True 9.0"

77's: 9.3 - 9.6 = True 9.5"
